IRRDisplay
Introduction
IIRDisplay allows a quick inspection of the result of applying a IIR Filter to a given waveform. IRR stands for infinite impulse response. An IRR Filter is also know as a recursive filter because it feeds back previous outputs as part of it's imput. More precisely
|
= |
N å i = 0 |
bi ×x( t - i) |
This application was implemented using the IIRFilter class

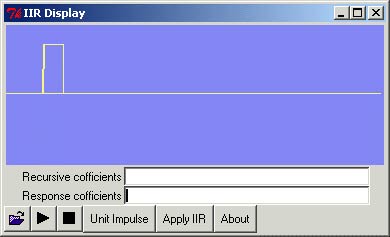

Below we see an unit impulse input at t=2
Next we see the response with b0=1.0, and a1=-0.8.

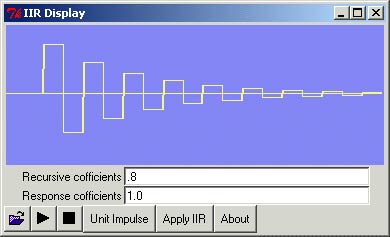

Note at t=2, the we first encounter the impulse and our response is b0=1.0. Next, at t=3, the impulse is now one unit back in time and hence and thus does not contribute to the response. However, the feedback portion applied to the response value at t=2 (=1.0) gives us a response of 0.8 for t=3. For t=4, we get 0.8 of 0.8 or .064, etc. Next we see change the sign of font face=symbol>a1 from -0.8 to 0.8 and we obtain a response of

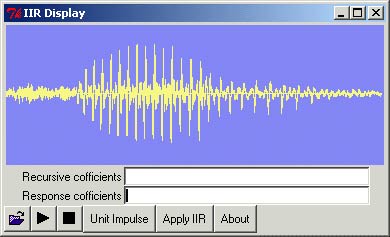

Next, for the fun we have an imput of the word "three"
